Pin Header 2.54mm(127) |
|
Adapter Strips - with screw machined pins Straight Terminals Single or double row - solder or Wire Wrap tail tin/gold |
Products summary |
|
Material Pin: Brass,machined. Plating(Pin): Gold/Tin over Ni. Plastic: Thermoplastic with Glass Fiber,UL 94V-0. Standard:PPS Black UL94V-0.
Electrical Current rating:3Amps/Contact Max. Insulation resistance: 1,000MΩ Min. Contact resistance: 20mΩ Max.
Mechanical Operating Temperature: -45°C to 105°C. |
|
L/T: 4 Week |
|
P/N:R-127-XXX-XXX-XXX |
|

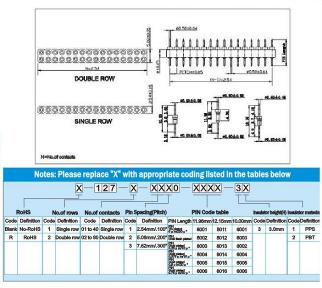

Drawings |
|
