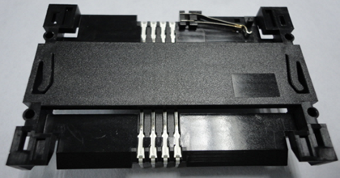

簡易版SMART CARD CONN

MORNAI CLOSE H:0.3mm (STANDOFF)

MORNAI CLOSE H:1.3mm (STANDOFF)

MORNAI CLOSE H:3.6mm (STANDOFF)

Products summary

1. CARD INSERTION SPECIFICATION:

  A. CARD INSERTION DEPTH:35.2mm.

   B. CARD THICKNESS=0.7-0.8mm.



2.READING CONTACT:

  POSITION: ACCARDING TO

   ISO 07816-2 C1-C8.

   CONTACT FORCE:30-80 GRAM.



3.MATERIAL AND FINISH:

  A. HOUSING: PBT UL 94-V0 COLOR:

       BLACK.

  B. CONTACT: COPPER ALLOY. SELECTIVE

       PLATING AU OVER 50u” NI MIN

       UNDERPLAT TIN ON TAIL ZONE.

  C. SWITCH: COPPER ALLOY. SELECTIVE

       PLATING AU 1u” OVER 50u” NI MIN

       UNDERPLAT TIN ON TAIL ZONE.

L/T:5Week

P/N:P/N: R-SMC-PX1XXN0

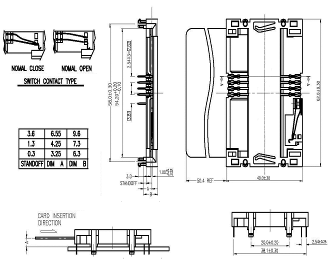

Drawings
